IBRAN-X Grids - the Professionals' Choice.
Access unparalleled load capacity and ease and speed of installation. IBRAN gravel grids are your go-to for gravel driveways, car parks, emergency access roads or other reinforced/stabilised gravel surfaces.
Create a neat, robust surface with a gravel stabilisation grid which you can drive any vehicle over. We only use environmentally friendly, 100% recycled plastic (PP+HDPE) to cope with all weather conditions without becoming brittle.

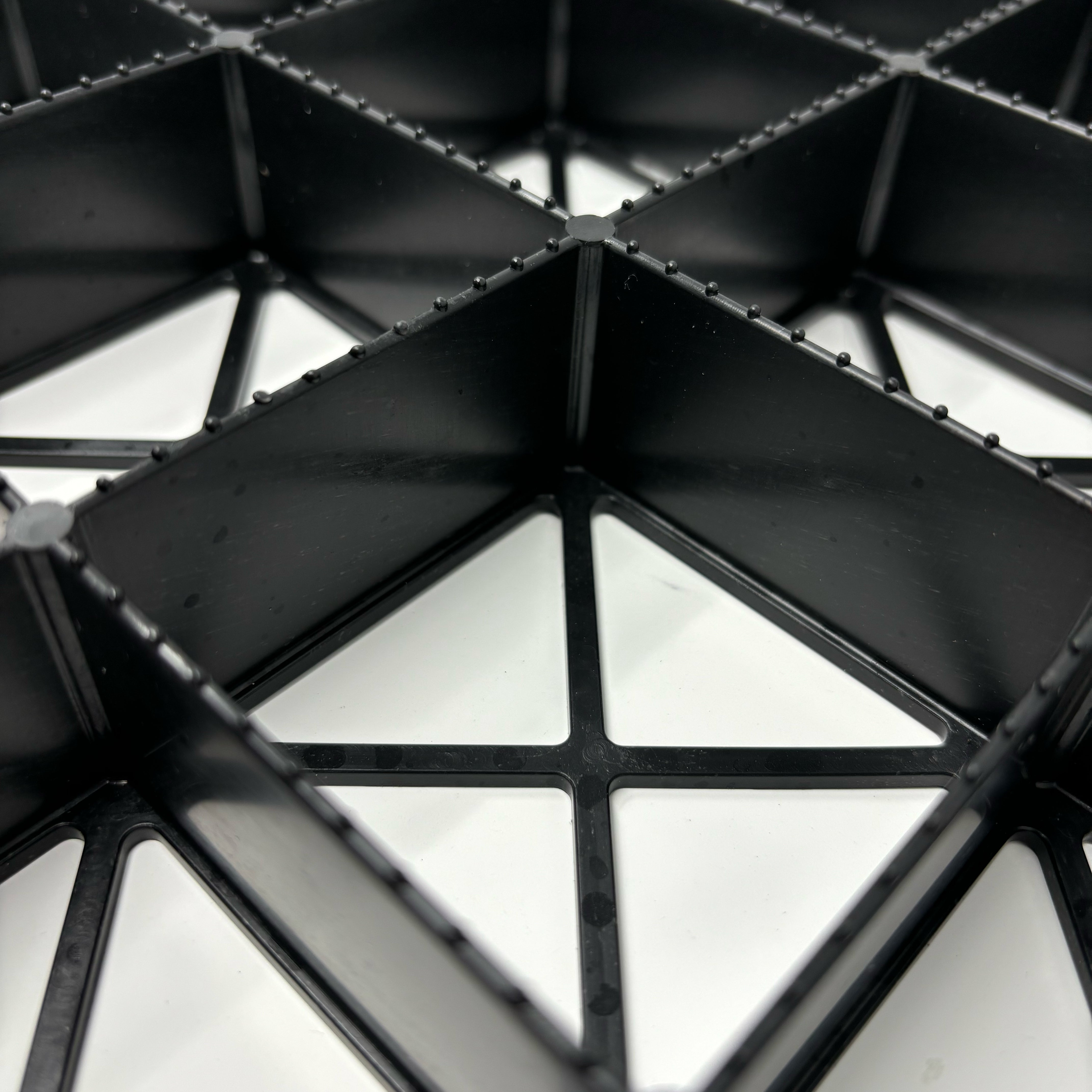

With over 100,000 successful installations and over 10 years of constant improvements, we have refined our gravel retaining grids. In this time, we introduced thick, ribbed, 3.5mm cell walls and a new, X-shaped, reinforced bottom lattice to stop stones migrating downwards. Couple with a speedy, roll-out membrane beneath for the most effective anti gravel migration system in the industry.
The result is a uniquely effective gravel reinforcement mesh system that is extremely durable yet simple to set up. Professional tradespeople in the UK and beyond are calling these the "best plastic gravel grids they've ever used".
Use for gravel parking areas, our car park/driveway plastic grid system has all the strength of concrete and tarmac (25 tonne axle loads). IBRAN gravel mats improve drainage of your stabilised gravel surface, quickly discharging rainwater to the ground, preventing flooding.
Large enough (4 per square metre) to make installation quick and easy, small enough to avoid excess waste. Our plastic gravel driveway grid system makes permeable surfacing project quick and cost effective. This even makes them highly time, labour and cost effective within more commercial applications. When installed correctly, our gravel grids will stand the test of time.
They are the perfect, eco friendly solution for preventing gravel migration, even on slopes up to 25%!
- Fully permeable, effective water drainage solution (SuDS compliant)
- Covers large areas quickly (500mm x 500mm x 40mm)
- Stabilises 5-35mm angular or decorative gravel.
- Rapid, push-fit, interlocking grids for quick installation.
- High load capacity: suitable for cars, LGVs/HGVs and emergency vehicles (up to 500 tonnes per square metre).
- Made in the UK by IBRAN using high quality, 100% recycled materials.
- UV stable & frost-proof (-50ºC to +90ºC)
- Part M Compliant (wheelchair friendly)
- Suitable for a wide range of light to heavy duty domestic or commercial applications.
- Long term, 25 year warranty (subject to documented installation - see our installation guide)
Full specifications below.
5★★★★★
Based on 50 reviews
Based on 50 reviews
★★★★★Verified purchase
Fantastic qualityideal and easy to use
Suzanne Main
★★★★★Verified purchase
Great productEasy to work with. Works exactly as described. Great service and fast delivery
Kathleen Dunn
★★★★★Verified purchase
Great serviceGood price for a quality product with great customer service.
Paul Norman
★★★★★Verified purchase
quick, fast, qualityfound what I was looking for, ordered it and it was shipped fast. really good service. the quality of the product is great.
Alexx M Wilson
★★★★★Verified purchase
Plastic Shed Base Grids
Darren Rochester
★★★★★Verified purchase
Great customer serviceGrids are just what my husband needed and customer service was excellent!
Lorraine Meades
★★★★★Verified purchase
Shed GridsGreat product. Easy to assemble and use
Martyn Durrant
★★★★★Verified purchase
What a shameThe grids are well made and look to have adequate load bearing strength for my project. However, because the base I need is hexagonal there’s a huge over purchase and awkward installation - because the sections only fit together in squared patterns!
A little more thought to the position of the connecting lugs would have allowed overlapping the joints (which might also have added to the strength of the assembly) but they won’t match! For the purpose of stabilisation they’re fine but for linking they’re not so good relying entirely on the lugs.
Chris Powdrill
★★★★★Verified purchase
Ibran plastic baseGot this for my new shed. Fantastic product , well worth the money .
Paul Bush
★★★★★Verified purchase
Exactly what I expectedPurchased these for shed base, very handy clip on/off grid pattern, easy to install and disassemble. Haven't installd them yet (actually in the process), but i think these might be ok for a driveway, I think...
Dennis
★★★★★Verified purchase
Nice product and quick deliveryThe order arrived in just a couple of days and was so easy to clip together and fill with shingle
Mike
★★★★★Verified purchase
Shed badeFantastic quality Fantastic price easy to use recommend to anyone
Andrew Lay
★★★★★Verified purchase
Can recommend 👌Very easy to lay. Great solution for a shed base and a lot more economical than laying a concrete base.
Jacqui Linger-Madsen
★★★★★Verified purchase
Surprisingly easy to useReally solid and strong incredibly easy to fit together and lay out and very good value for your money.
Ms Jody Huxley
★★★★★Verified purchase
All goodEasy to order, quick and effective delivery, good product.
John Roche
★★★★★Verified purchase
Plastic GridsGreat service, fast delivery and a fantastic, easy to use product. Clicks together easily and is super strong.
Chris W
★★★★★Verified purchase
GridsExcelent product.
Bob
★★★★★Verified purchase
Great productSimple and easy to install
Steve Nutkins
★★★★★Verified purchase
Shed gridsVery good and robust for the job
Roy Smith
★★★★★Verified purchase
Great value, prompt delivery.I ordered 20 plastic shed base grids; the cost was very competitive with fast delivery. I haven’t started to lay them yet but they feel sturdy and look fit for purpose. I’m not expecting to find any issues with them. I would recommend this site; they use recycled plastic which was an important factor in my choice of company.
Annie.
★★★★★Verified purchase
RecommendReally easy to order via the calculator on the website. Reasonable price. Next day delivery. Brilliant! Would definitely buy again in the future.
Helen Waudby
★★★★★Verified purchase
Spot onThe grids are great. They click in good. Better than those ones I bought in Chesterfield
Dan Woodward
★★★★★Verified purchase
Shed GridsBought 120 grids as a base for large log cabin. Once the sub base and membrane were laid the install went great, 120 grids and two tonnes of pea shingle and it was ready for the cabin, much quicker and cheaper than concrete
Paul Harrison
★★★★★Verified purchase
GreatArrived on time. This is my second time of buying one and if you found the best the first time why change
William Daniels
★★★★★Verified purchase
Plastic Shed Base Grids
Joanne Carlyon Blanchard
★★★★★Verified purchase
Plastic Shed Base Grids
Steve Skeats
★★★★★Verified purchase
BaseGood solid and very easy to install.
Gary Austerfield
★★★★★Verified purchase
Does what it says on the tinRobust and way to install
Richard Webb
★★★★★Verified purchase
Grass Parking Grids
Graham Barrow
★★★★★Verified purchase
Excellent shed baseI had a concrete base but wanted to get the shed bearers off of it because of water pooling. The Plastic Shed Base Grids are easy to assemble and you just fill them with 10mm stones to create a very solid draining base. The sizing is spot on (some reviews of other makes said they were smaller than advertised).
It also helps when lining up the shed as you now have a grid pattern to work from.
I spent a bit of extra time and money getting the base right - but the end result was well worth it.
David S
★★★★★Verified purchase
Brilliant Base GridsHaving purchased these with the intent of installing a new Shed base, not only are they a great price for an 8x6 base but also the best base I’ve brought to date.
Great customer service
Quick dispatch
Sturdy, well made grids!
Toni Butcher
★★★★★Verified purchase
Plastic grid baseAbsolutely ideal for creating a stable strong base. Once filled with pea gravel these grids all connected together created a solid and usable base.
Alistair Barker
★★★★★Verified purchase
Good grid & prompt delivery
John Little
★★★★★Verified purchase
Great exactly what we needed.
Amanda Asquith
★★★★★Verified purchase
Good service
Andy O'Neill
★★★★★Verified purchase
Great productWorked really well and delivered on time.
Gary Grant
★★★★★Verified purchase
Fast and efficient serviceOrdered grid panels mid afternoon on Friday and paid for Saturday delivery. One box was delivered on Saturday but the other not till Sunday. Think this was down to DPD not yourselves. Quality of grids was good and found them easy to assemble and fit. Have not driven over area yet as waiting for soil etc to solidify a bit first. Good product and service would definitely recommend.
Mark Walton
★★★★★Verified purchase
Great productBrilliant and well made and will always use for ground works b
Chris Goodwin
★★★★★Verified purchase
Worked a treat!!Very easy to use, highly recommended by our builder.
Steven Miller
★★★★★Verified purchase
Did the job wellDelivery was as promised, the product did what it said and we are very pleased with it
Karen Dance
★★★★★Verified purchase
Plastic Shed Base Grids
Liza Chadwick
★★★★★Verified purchase
Great but harder to put in that I thoughtReally work to provide a stable base for the car, on the grass. No more sliding, wheelspins or mud!
Hard to push into the grass- had to use two cars in the end!
Alex Mears
★★★★★Verified purchase
Definitely recommendEasy to use and really quick, even for pensioners like us. The base feels very sturdy, would definitely recommend using them.
Irena Fraser
★★★★★Verified purchase
Great product but poor deliveryOur original delivery from DPD did not arrive, after waiting 5 days we contacted Ibran and they released a new replacement order that did arrive 2 days later. Ibran Customer Service was excellent but unfortunately let down by their delivery provider.
Michaela Hills
★★★★★Verified purchase
Plastic Shed Base Grids
Ian Jolly
★★★★★Verified purchase
Early alarm callI ordered these and was given a delivery date, sp lanned my week accordingly so that I would be in on the advised day, Great. EXCEPT that the delivery arrived three days earlier and it was only by good fortune that I had left to go out, otherwise there would have been no one to receive these.
In use I found these to be easy to work with, but the key really is a level ground to put them on, as these will follow the contours. I raked a shallow layer of gravel over the ground (which was very sticky clay and impossible to level sufficiently) then laid the grids on this, checking levels as I went followed by filling all with gravel as well as about 25-30 cm beyond the grids. All seemed good until I started building my shed when I realised there were still some dips which needed infill. All good now. Are they as easy as one would hope for, well not on wet sticky clay is my answer. Hoever it does seem after 4 weeks to be a stable and soild base. I guess time will tell.
Also found these make a good temporary walkway to stop the lawn turning to mud!
Dont Pamic
★★★★★Verified purchase
Great productWell priced, quick delivery and a sturdy product. Perfect for what we needed. Thanks.
Caroline
★★★★★Verified purchase
Brilliant ideaI had quite an uneven base of paving stones when I removed my old summerhouse. I levelled them up and installed a plastic shed base grid on top. A great product that was actually a joy to install and looks the part when finished. Really easy to click together and very satisfying to fill with pea gravel. Would definitely recommend
crigg
★★★★★Verified purchase
Grass Parking GridsGreat product and easy to use
ALLEN COTTEE
★★★★★Verified purchase
Easy to useSet up a shed base. The grids were easy to use and all was finished quickly.
Nicola
Write a review
☆☆☆☆☆
| Dimensions | 500mm x 500mm x 40mm |
| Coverage | 4 grids per m² |
| Wall thickness | 3.5mm ribbed |
| Cell size | 68mm x 68mm |
| Weight | 860g per grid |
| Compression resistance | 500 tonnes per m² |
| Axle load | 25 tonnes |
| Material | 100% recycled PP/HDPE |
| Temperature range | -50°C to +90°C |
| Recommended fill | 5-35mm angular or decorative gravel |
| Slope tolerance | 25% / 15° |
| Compliance | SuDS & Part M compliant |
Yes. The grids can be cut to fit any shape or area, and offcuts are recyclable.
Tested to 500 tonnes per square metre, suitable for cars through to HGVs and emergency vehicles.
20mm angular gravel is ideal. The system works with 5-35mm aggregate; angular locks together better than rounded.
Yes. The grids are fully permeable, making them a sustainable urban drainage solution.
Yes, a long-term guarantee applies where installation follows the published guide.
